DESCRIPTION

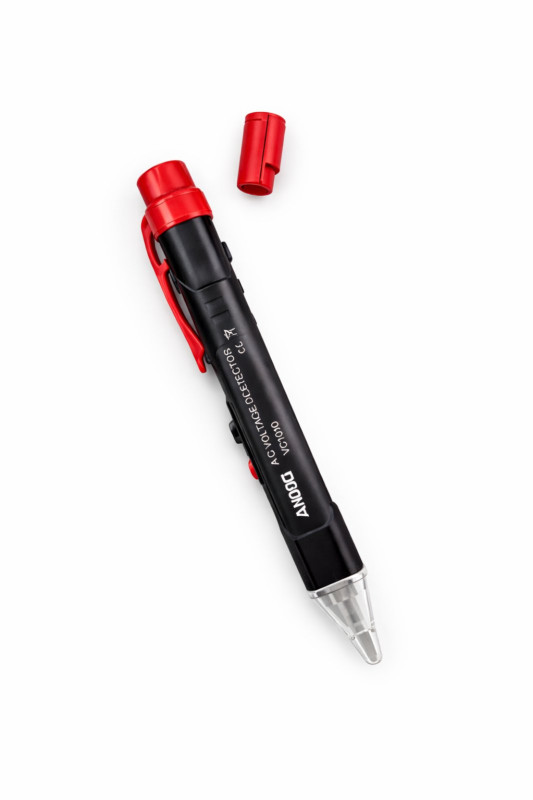

ANENG VC1010 is a non‑contact digital voltage detector pen designed to detect the presence of AC voltage without touching live conductors. It’s a simple and safe tool for checking whether a wire, outlet, or electrical point is live.

 Key specs:

• Voltage detection range: ~12 V to 1000 V AC (50/60 Hz) – appropriate for mains voltage and many household circuits.

• Detection method: Non‑contact – senses electric field without direct contact with bare conductors.

• Alarm: LED indicator + buzzer to alert when voltage is present.

• Display: LCD screen shows signal strength and voltage indicators.

• Adjustable Sensitivity: High/low sensitivity selectable to detect signals through insulation or at different proximity.

• Built‑in flashlight: LED light to help illuminate dark work areas.

• Power: 2 × AAA batteries (not always included).

• Auto‑shutoff: Automatically turns off after a few minutes of no use to save battery.

• Safety ratings: CE CAT II‑1000 V / CAT IV‑600 V (indicates basic safety category for electrical testing).

Typical Uses

• Detecting whether a live AC supply is present in wires, outlets, switches, junction boxes, breakers, etc. without direct contact.

• Locating cables in walls or identifying live vs neutral conductors by signal strength.

• Quick safety checks before working on electrical circuits.

Safety Notes

• This tool only detects AC voltage fields and does not measure actual voltage values like a multimeter.

• In some situations (shielded cables, thick insulation, interference) it might not detect voltage even if present.

• Always follow safety procedures and use appropriate certified test equipment for critical work.
