Description

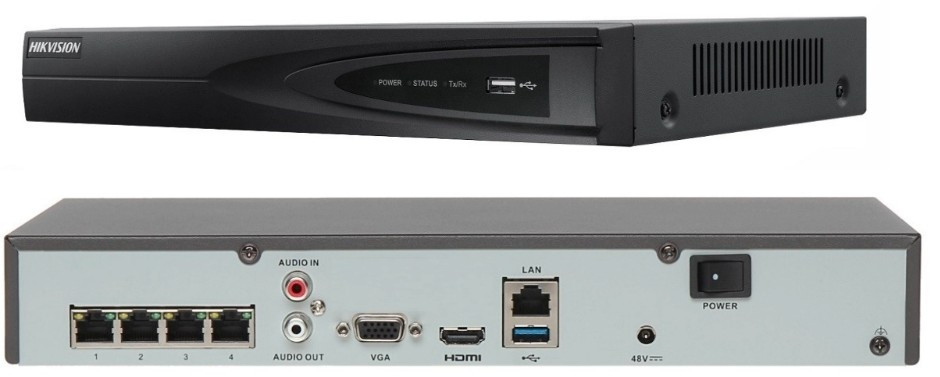

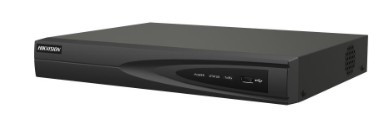

The Hikvision DS‑7604NI‑Q1/4P is a compact 4‑channel PoE Network Video Recorder designed for small‑to‑medium IP surveillance systems. It integrates Power over Ethernet (PoE) ports, allowing you to power and connect up to four IP cameras directly without separate power adapters. The recorder supports high‑resolution 4K (up to 8 MP) recording, efficient video compression, and remote access via Hik‑Connect or web interfaces. With HDMI and VGA outputs for live monitoring, smart search and playback functionality, and compatibility with third‑party cameras, this NVR offers a flexible solution for residential or commercial security installations.

Key Features

 Video & Camera Support

• 4 IP camera inputs with built‑in PoE for plug‑and‑play connectivity.

• Supports high‑definition recording up to 8 MP (4K) resolution.

• Efficient video encoding: H.265+/H.265/H.264+/H.264 to reduce storage use.

 Performance & Decoding

• Bandwidth: Up to 40 Mbps incoming and 80 Mbps outgoing.

• Decoding capability: Typically supports 1 channel @ 8 MP or multiple channels at lower resolutions for playback.

• Simultaneous HDMI & VGA output at up to 4K (3840×2160) on HDMI for live monitoring.

 Storage & Playback

• 1 SATA bay for a hard drive (supports up to around 6 TB–8 TB depending on region/vendor).

• Smart search & smart playback to quickly find video based on motion or event triggers.

• Synchronous playback of multiple camera feeds.

 Connectivity & Interfaces

• 4 independent PoE ports for camera power and network.

• Standard Ethernet (RJ‑45) port for network connection.

• USB 2.0 ports for backup and mouse control.

• Two‑way audio support via RCA ports.

 Smart & Network Features

• Supports motion detection and Video Content Analytics (VCA) such as motion, line crossing, and intrusion detection.

• Compatible with Hik‑Connect for remote monitoring and configuration via mobile or web.

• ONVIF compatibility for use with many third‑party cameras.
