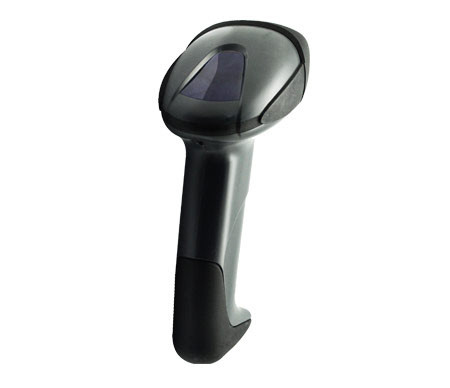

SENSONIC SGT8300L Barcode Scanner

The SENSONIC SGT8300L is a high-performance wireless barcode scanner built for fast, accurate, and long-range scanning in demanding environments. Equipped with a visible 650nm laser and dual scan modes (manual and automatic), it ensures a scan rate of up to 100 times per second and a decode rate of 300 decodes per second. Its high-capacity 1500mA lithium battery offers extended operation, while the device supports charging directly on the stand.

Key Features:

• High Resolution & Accuracy: Capable of reading barcodes with resolutions as fine as 0.10mm (4mil).

• Wide Communication Range: Operates up to 1200 meters in open areas and up to 300 meters indoors.

• Flexible Scanning: Supports various angles (Pitch: ±60°, Skew: ±45°, Rotation: 15°) for comfortable use.

• Versatile Barcode Support: Compatible with EAN-8, EAN-13, UPC-A, UPC-E, Code 39, 93, 128, Codabar, ITF, MSI, and more.

• Dual Installation Options: Can be used handheld or mounted on a bracket.

• Built-in Memory: 4MB internal memory, expandable up to 8MB.

• Durability: Dust and waterproof according to ICC529, rated IP42.

• Functional Design: Features automatic charging when placed on the stand, code number statistics, and mandatory reset options.

Technical Specifications:

• Resolution: 0.10mm (4mil)

• Voltage Requirement: DC 5V

• Current Consumption: 1500mA

• Charging Time: 10 hours

• Light Source: 650nm Nano Visible Laser

• Scan Rate: 100 times/sec

• Decode Rate: 300 decodes/sec

• Working Frequency: 433MHz ISM band

• Communication Distance: Up to 1200m (open), 300m (indoors)

• Connector Interfaces: RS232 (DB9 Male), USB-A (2.0)

• Dimensions: 160 x 65 x 85 mm

• Weight: 280g

• Cable Length: 2 meters

• Case Material: ABS/PC

• Light Intensity Resistance: Up to 4000 lux (sunlight)
