Description

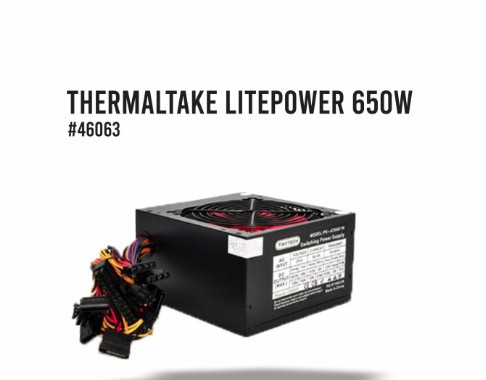

The Thermaltake Litepower 650W is an entry-level ATX 12V 2.3 power supply unit (PSU) designed for desktop PCs that need up to 650 W of power. It’s a non-modular PSU with a standard set of cables and connectors for typical consumer builds. It includes a 120 mm cooling fan for airflow and uses high-quality internal components to deliver power reliably under various system loads. The unit supports 230 V mains input and is compliant with industry safety standards.

Key Features

Power & Output

• Total Output: 650 W — sufficient for most mid-range systems.

• Single +12 V Rail: Delivers most of the power where modern CPUs and GPUs need it.

• Multiple Voltage Rails:

  • +12 V rail ~48 A

  • +3.3 V and +5 V for peripherals

  • +5 Vsb standby rail

Cooling & Noise

• 120 mm Fan: Provides airflow to keep temperatures down with relatively low noise.

• Ultra-Quiet Operation: Designed to keep system noise minimal.

Cables & Connectivity

• ATX 24-pin main power connector

• 4+4 pin CPU connector

• 2 × 6+2 pin PCI-E for GPUs

• Multiple SATA and peripheral connectors

• Highly flexible cables for easier routing and better airflow

Protection & Standards

• Active Power Factor Correction (PFC): Improves efficiency and reduces power waste.

• Built-in protections: OVP (Over Voltage), OPP (Over Power), SCP (Short Circuit) to safeguard connected components.

• Safety Certifications: CE, TUV SUD, CB, EAC, RCM approved.

Build & Compatibility

• ATX Form Factor: Standard size for most PC cases.

• Compatible with Intel and AMD platforms.

• Good cable length for larger chassis.
