Projection System

• DLP™

Light Source

• 220 W

Native Resolution

• 1280 x 800

Maximum Resolution

• 1920 x 1200

Brightness

• 5000 ANSI Lumens (Standard), (Compliant with ISO 21118 standard)

Aspect Ratio

• 16:10 (Native), 4:3 (Supported), 16:9 (Supported)

Contrast Ratio

• 20,000:1

Image Size

• 27" (68.6 cm) ~ 7.62 m (300")

Zoom Ratio

• 1.1x

Digital Zoom

• 2x

Lens

• f = 21.85 mm~24 mm, Manual Zoom, Manual Focus

Projection Offset (Half-Height)

• 124%

Projection Mode

• Front, Rear, Ceiling, Rear Ceiling

Display Color

• 1.07 Billion Colors (30-bit)
• 1.07 Billion Colors (30-bit)

Vertical Sync Rate

• 24 ~ 120 Hz

Horizontal Sync Rate

• 15 to 100 kHz

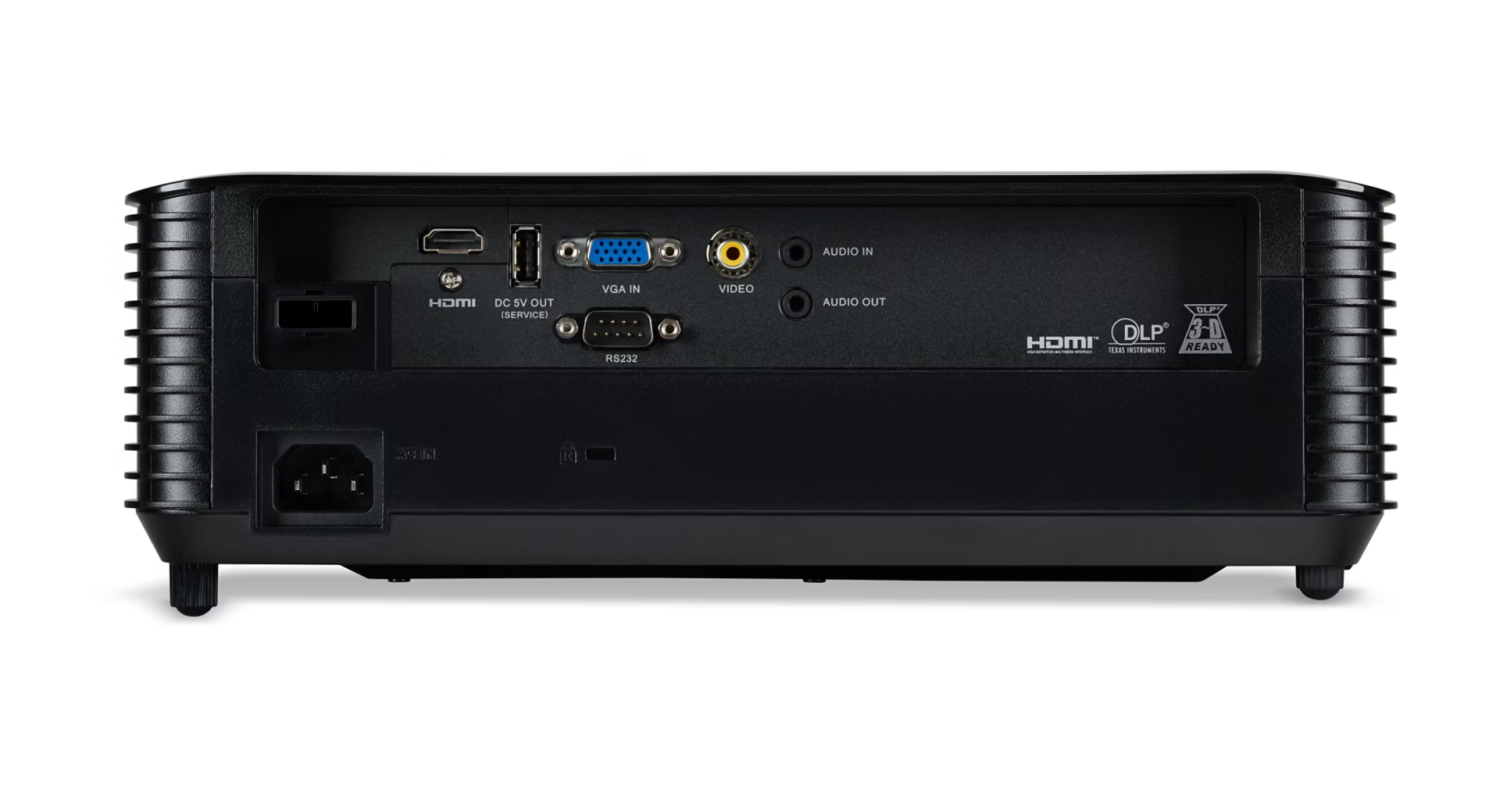

VGA In

• x1, D-sub

Video

• x1, RCA

Audio In

• x1, 3.5mm mini jack

Audio Out

• x1, 3.5mm mini jack

S/PDIF

Speaker

• x1, 3 W Speaker
• x1, 3 W Speaker

RS232

• x1, D-sub

Wireless Projection

• EZCast, Miracast Wi-Fi

Security

• Kensington Lock
• Security Bar

Power Consumption

• 265Watts (Standard), 205Watts (ECO), 0.5Watts (Standby)

Installation

• Ceiling Mountable

[Dimensions (W x D x H)

• 313 mm (12.32") x 240 mm (9.45") x 113.70 mm (4.48")
• 313 mm (12.32") x 240 mm (9.45") x 113.70 mm (4.48")

Weight (Approximate)

• 2.8 kg (6.1 lb)
