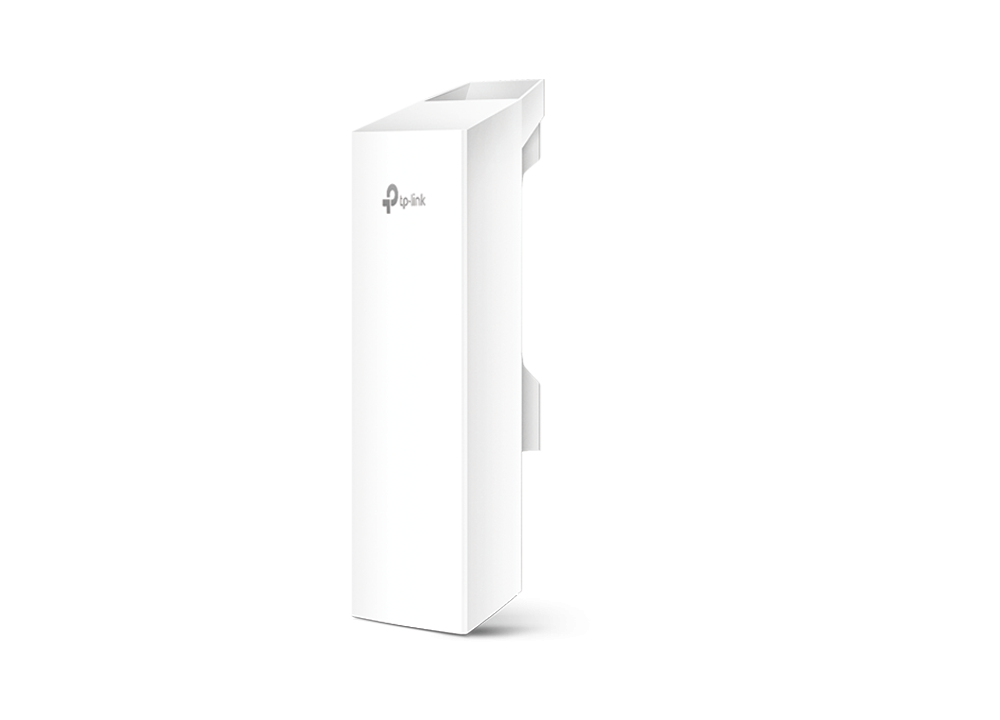

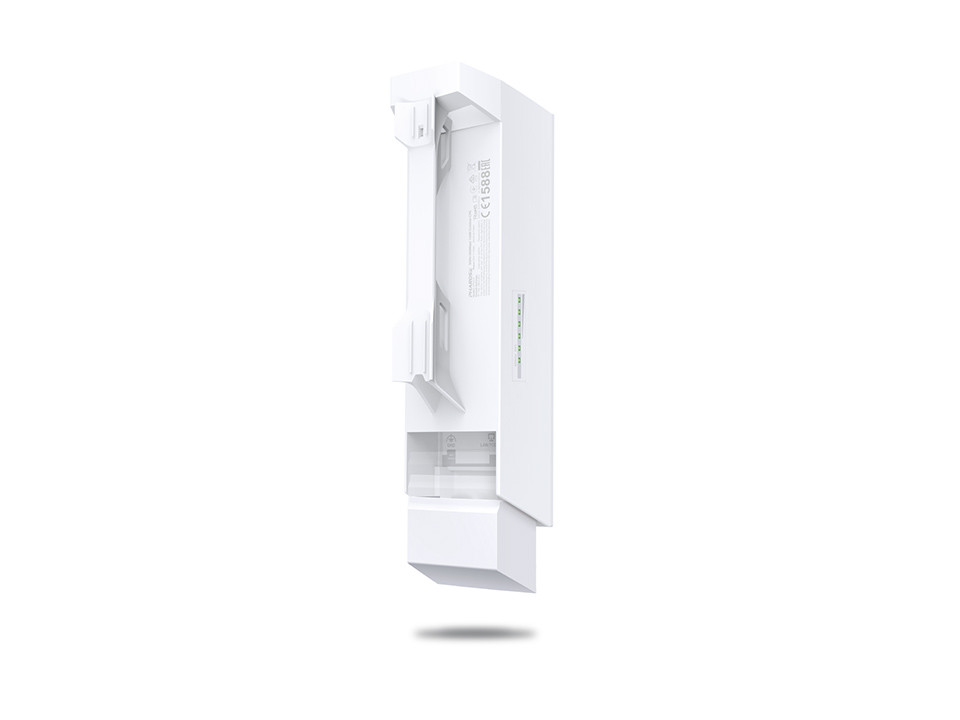

Outdoor Wireless CPE – 2.4GHz 300Mbps Long-Range Wireless Bridge

Engineered for robust outdoor wireless deployments, this 2.4GHz Outdoor Wireless CPE combines high performance, durability, and advanced features to support long-range connectivity in point-to-point or point-to-multipoint applications.

Powered by a Qualcomm Atheros 560MHz CPU and 64MB DDR2 RAM, it delivers wireless speeds up to 300Mbps using 802.11b/g/n standards. The built-in 9dBi dual-polarized directional antenna provides solid coverage with a 65° horizontal and 35° vertical beamwidth, making it ideal for rural or wide-area network bridging.

Designed for rugged environments, the device is housed in an ASA plastic IPX5-rated waterproof enclosure, offering 15KV ESD and 6KV lightning protection for reliable outdoor performance. Power is supplied via Passive PoE (24VDC, 0.6A), enabling flexible and easy installations up to 60 meters.

Key features include:

• TDMA-based Pharos MAXtream protocol for reduced latency and interference

• Adjustable transmission power up to 27dBm (500mW)

• Multi-SSID with VLAN tagging, WDS, and full encryption options (WPA/WPA2, WEP)

• Advanced wireless tuning: channel width selection (5/10/20/40MHz), MAC filtering, DFS, ACK timeout

• Comprehensive management tools: Pharos Control, web UI (HTTP/HTTPS), SNMP, SSH, system logs

Diagnostic tools such as spectrum analyzer, signal quality indicators, throughput monitor, speed test, and ping/traceroute ensure optimal performance and quick troubleshooting.

Package Includes:

• Outdoor Wireless CPE

• 24V Passive PoE Adapter with Remote Reset

• Pole Mounting Straps

• Power Cord

• Quick Installation Guide

Built for all-weather outdoor operation, the unit handles extreme environments with operating temperatures from -40°C to 70°C, and humidity tolerance up to 95% (non-condensing).

Ideal for rural internet access, CCTV backhaul, and outdoor wireless networking over extended distances.
