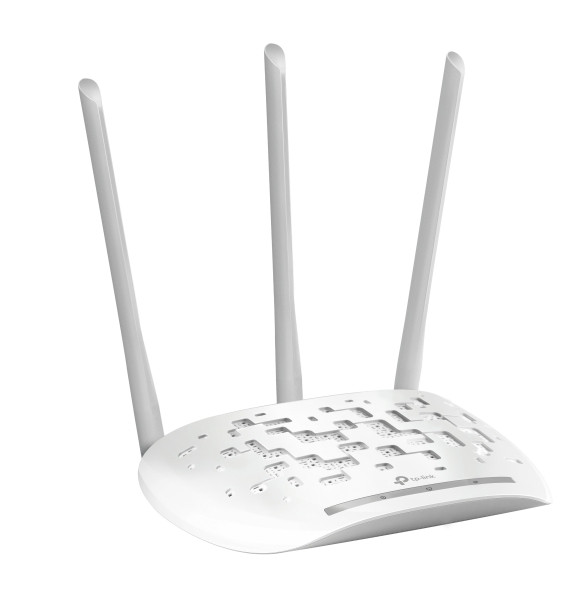

TP-LINK TL-WA901N – WIRELESS N ACCESS POINT (450MBPS, 2.4GHZ)

THE TP-LINK TL-WA901N IS A VERSATILE WIRELESS N ACCESS POINT DESIGNED TO ESTABLISH OR EXPAND A SCALABLE HIGH-SPEED WIRELESS N NETWORK. IT DELIVERS UP TO 450 MBPS SPEED ON THE 2.4 GHZ BAND AND SUPPORTS MULTIPLE MODES TO SUIT A VARIETY OF NETWORKING NEEDS—MAKING IT IDEAL FOR HOME, OFFICE, OR SMALL BUSINESS USE.

HARDWARE FEATURES:

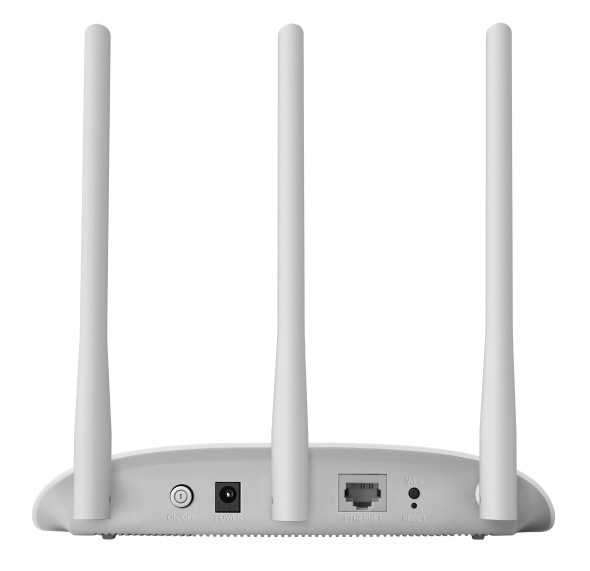

• INTERFACE:
  • 1× 10/100M ETHERNET PORT (RJ45)
  • SUPPORTS PASSIVE PoE (UP TO 30 METERS)

• BUTTONS:
  • POWER ON/OFF
  • RESET
  • WPS

• POWER SUPPLY:
  • EXTERNAL 9VDC / 0.9A ADAPTER

• ANTENNA:
  • 3 FIXED OMNI-DIRECTIONAL ANTENNAS

• DIMENSIONS:
  • 7.7 × 5.3 × 1.4 IN (195 × 134 × 36 MM)

WIRELESS FEATURES:

• WIRELESS STANDARDS:
  • IEEE 802.11B/G/N (2.4 GHZ)

• FREQUENCY:
  • 2.4 GHZ

• SIGNAL RATE:
  • UP TO 450 MBPS AT 2.4 GHZ

• RECEPTION SENSITIVITY:
  • 11G 54M: -76DBM
  • 11N 20MHZ: -73DBM
  • 11N 40MHZ: -70DBM

• TRANSMIT POWER:
  • <30 DBM

• WIRELESS MODES:
  • ACCESS POINT
  • RANGE EXTENDER
  • CLIENT
  • MULTI-SSID

• WIRELESS FUNCTIONS:
  • ENABLE/DISABLE WIRELESS RADIO
  • WDS BRIDGE
  • WMM
  • WIRELESS STATISTICS

• WIRELESS SECURITY:
  • 64/128-BIT WEP
  • WPA/WPA2
  • WPA-PSK/WPA2-PSK ENCRYPTIONS

NETWORK & MANAGEMENT:

• DHCP:
  • SERVER
  • DHCP CLIENT LIST

• QUALITY OF SERVICE:
  • WMM

• MANAGEMENT:
  • SNMP

• PROTOCOL SUPPORT:
  • IPV4, IPV6

ADVANCED FEATURES:
• PASSIVE POE SUPPORT UP TO 30 METERS

CERTIFICATIONS:
FCC | RoHS

PACKAGE CONTENTS:
• TP-LINK TL-WA901N ACCESS POINT
• POWER ADAPTER
• PASSIVE POE INJECTOR
• RJ45 ETHERNET CABLE
• QUICK INSTALLATION GUIDE

ENVIRONMENTAL SPECS:
• OPERATING TEMP: 0°C40°C (32°F104°F)
• STORAGE TEMP: -40°C70°C (-40°F158°F)
• OPERATING HUMIDITY: 10%~90% NON-CONDENSING
• STORAGE HUMIDITY: 5%~90% NON-CONDENSING

THE TL-WA901N IS A RELIABLE SOLUTION FOR WIRELESS EXTENSION, POINT-TO-MULTI-POINT CONNECTIONS, OR CREATING A CENTRALIZED WIRELESS NETWORK WITH EASE.
